Wiring Guides

The wiring diagrams in this section are drawn using Cirkit Designer, a general-purpose tool. Alternatively, you can use the WLED-specific WLED Wiring Designer Tool to design your own diagrams, check them with the built-in diagram validator, and simulate current flow.

Addressable LED Strips

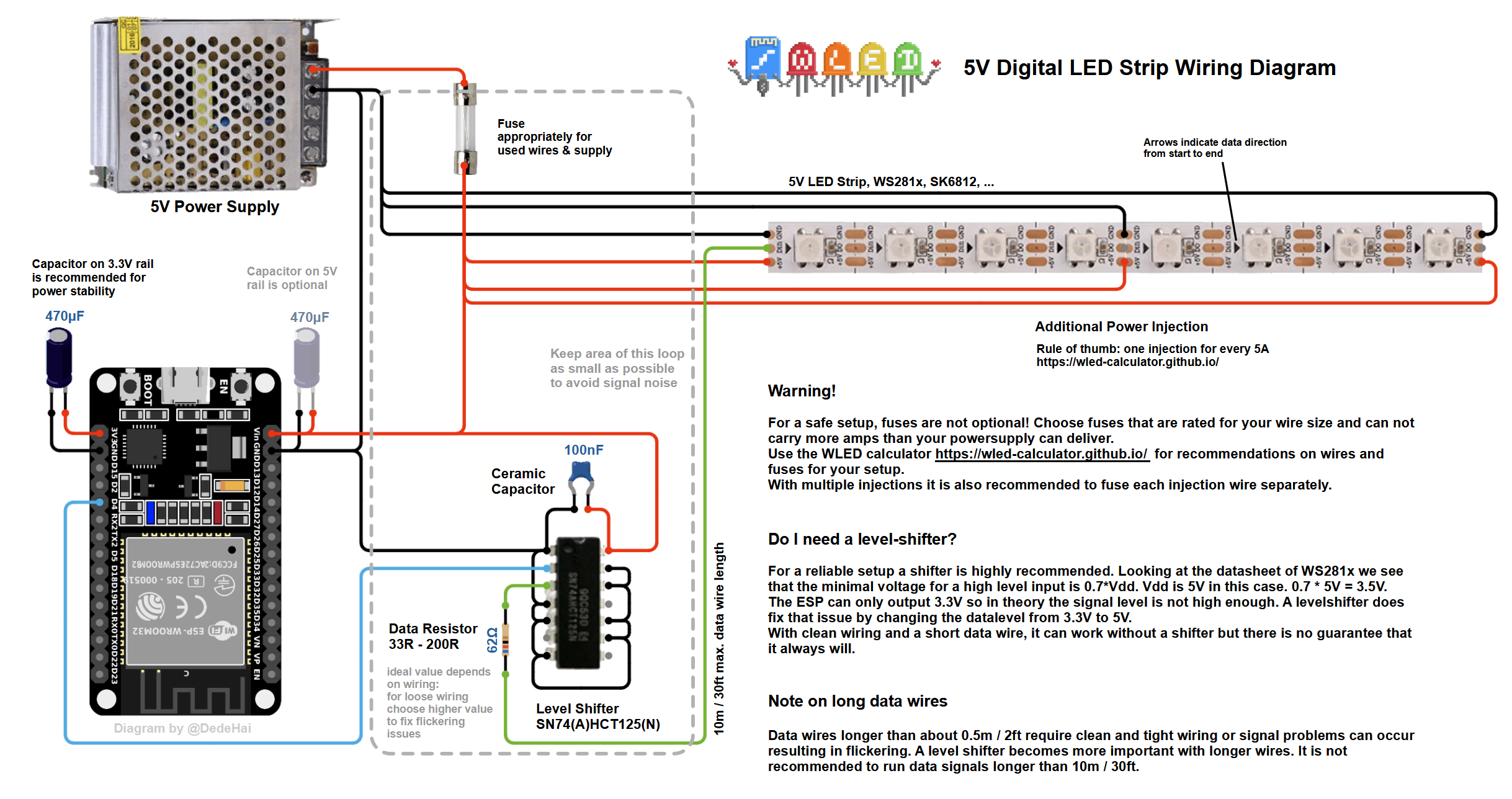

DigitalWiring

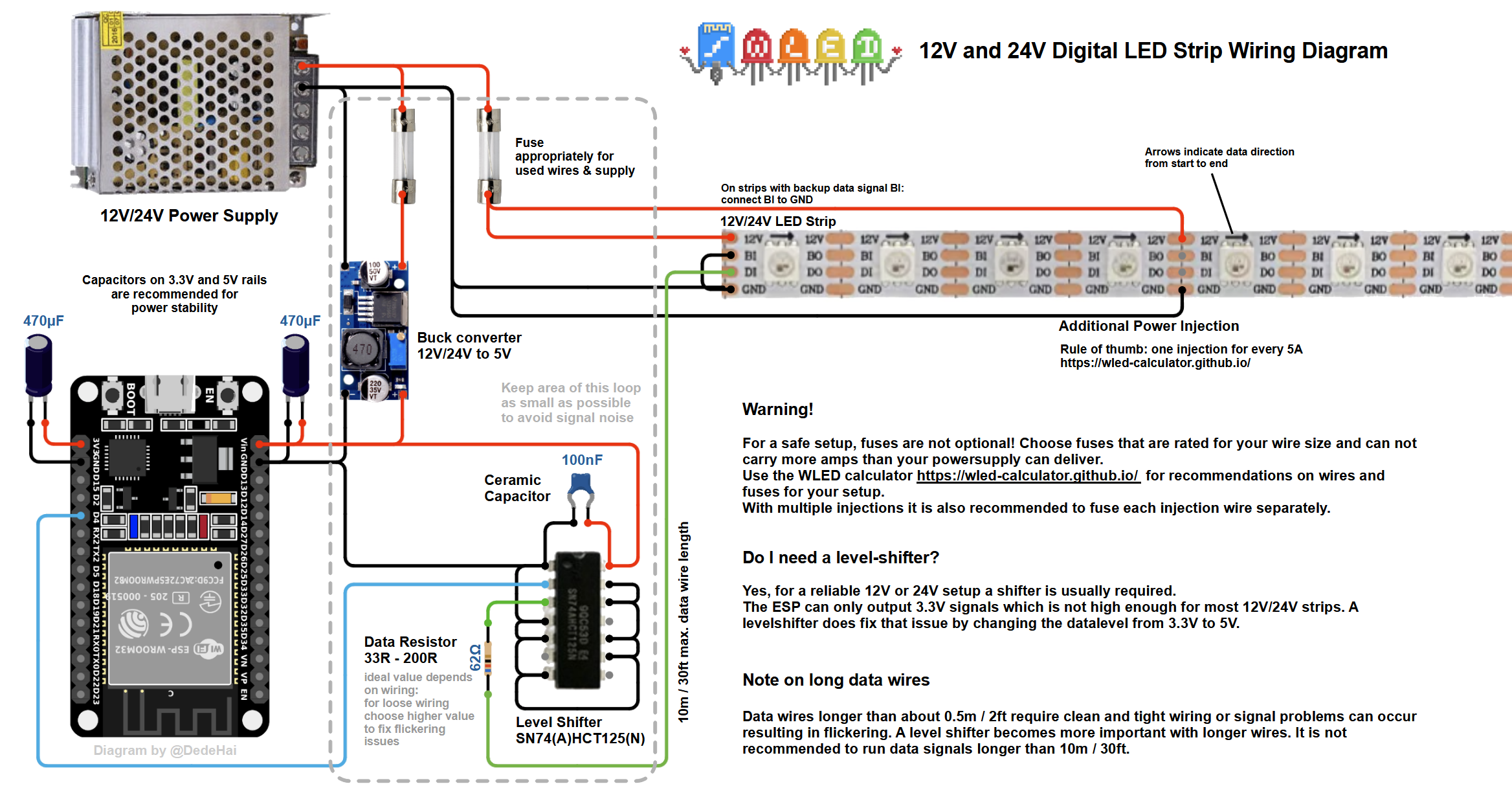

DigitalWiring12V

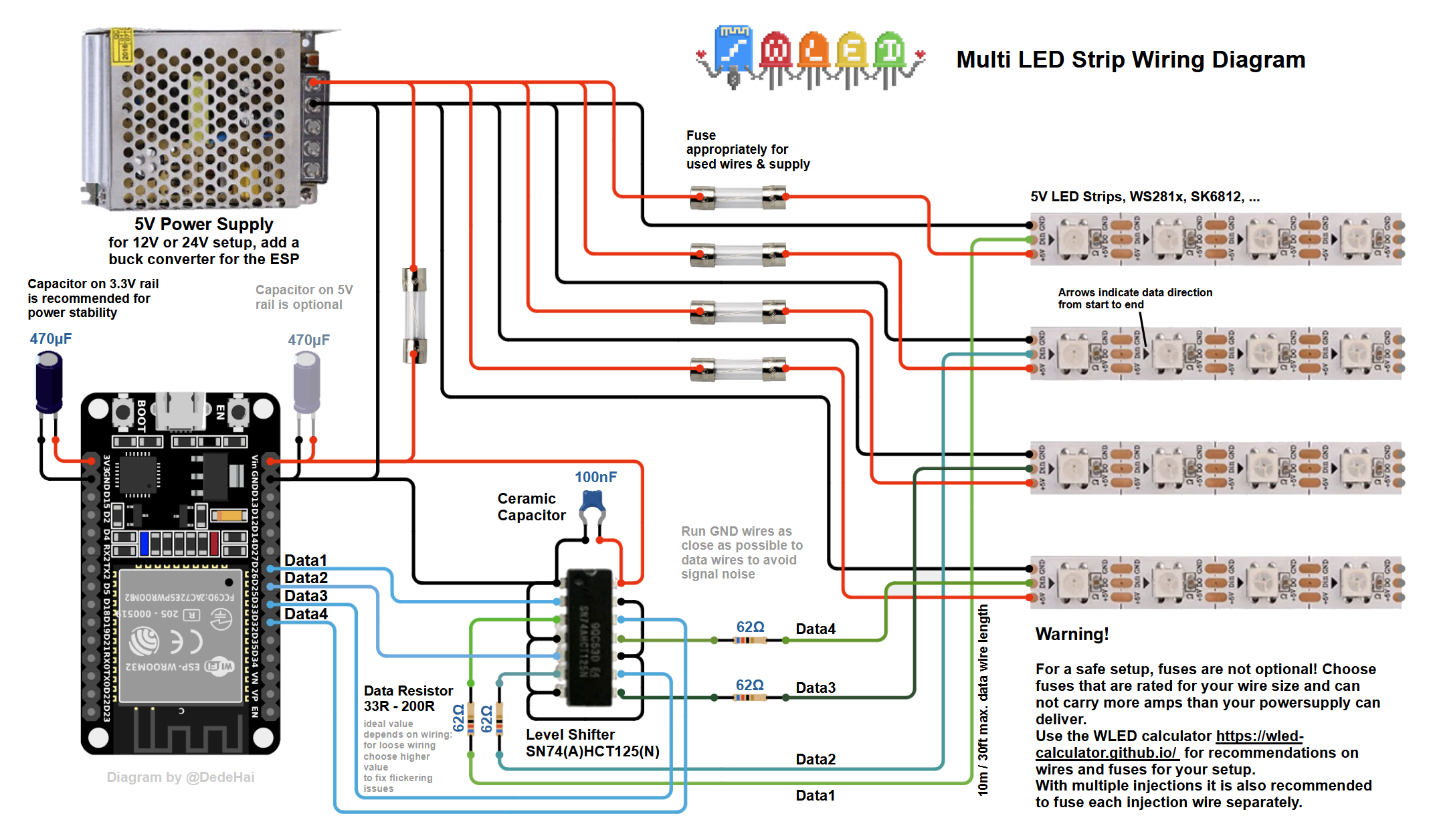

DigitalWiringMultiStrip

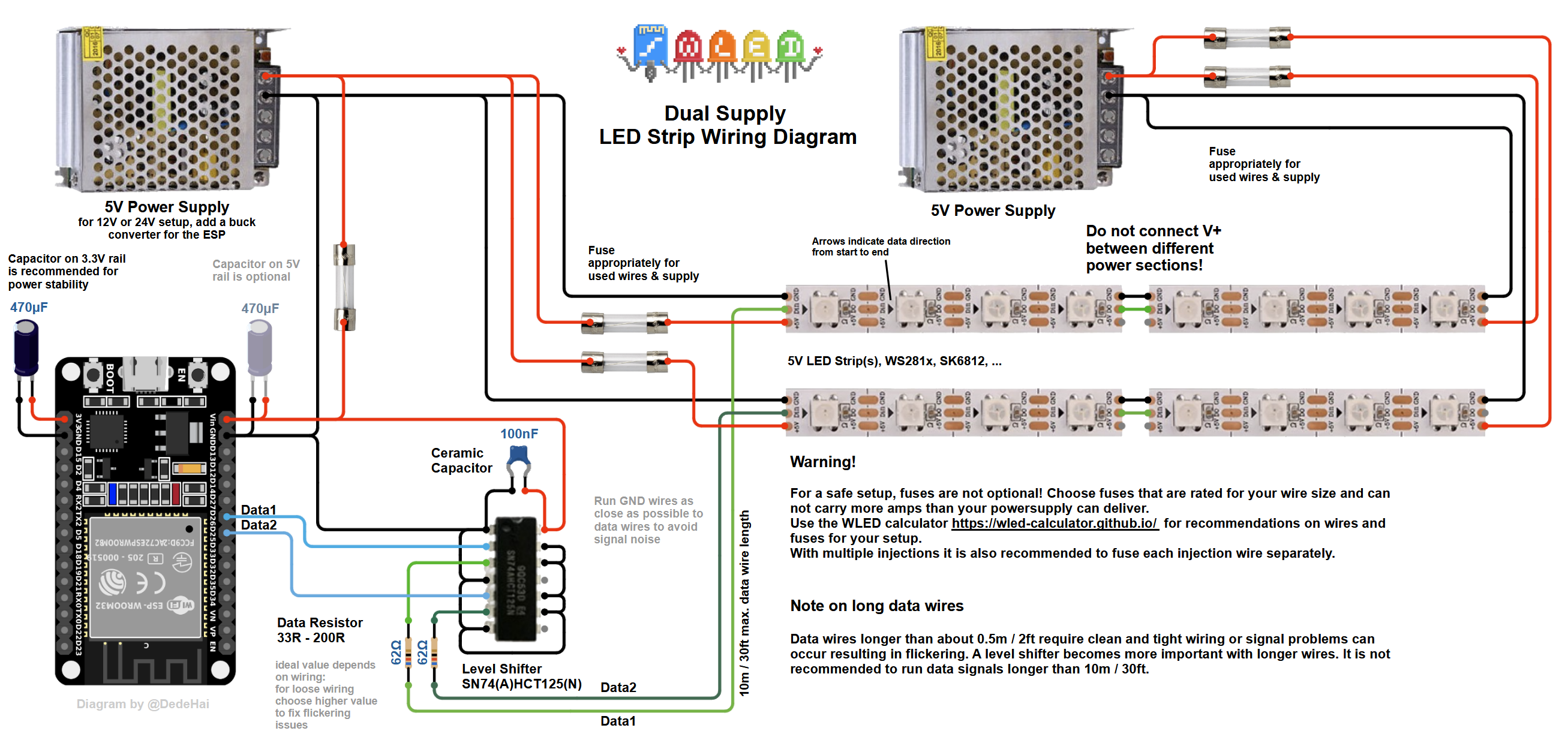

DigitalWiringMultiSupply

Non-Addressable LED Strips

AnalogWiring1x

AnalogWiring3x

More info on analog LEDs can be found here

Levelshifter

The SN74(A)HCT125(N) can be wired in different ways. The diagrams show the easiest wiring by connecting unused inputs to GND and leaving unused outputs unconnected. In general:

  • Inputs 1A to 4A: connect unused inputs to GND
  • Connect the output disable pins 1OE to 4OE to GND, enabling all outputs
  • Outputs 1Y to 4Y: leave unused outputs unconnected

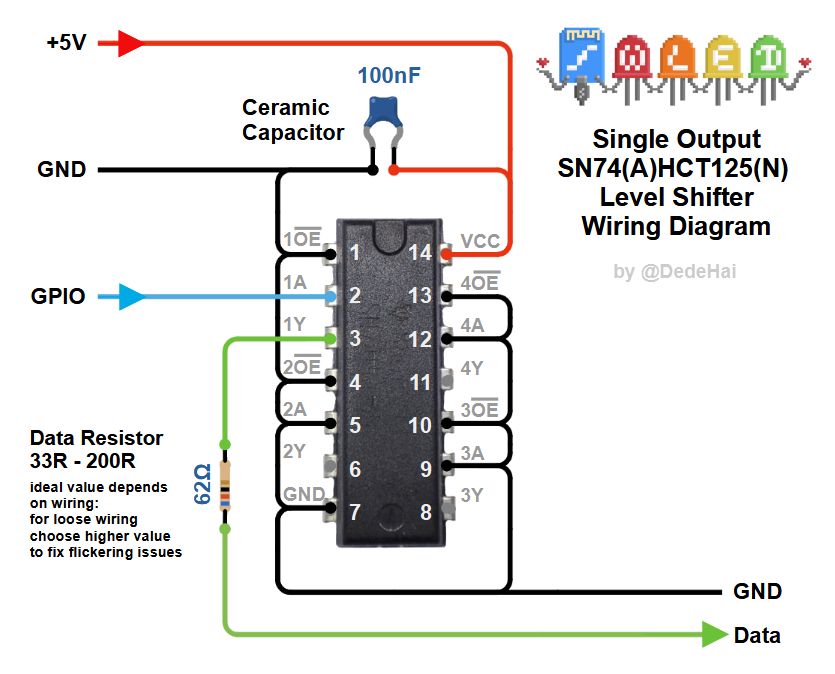

Shifter 1CH

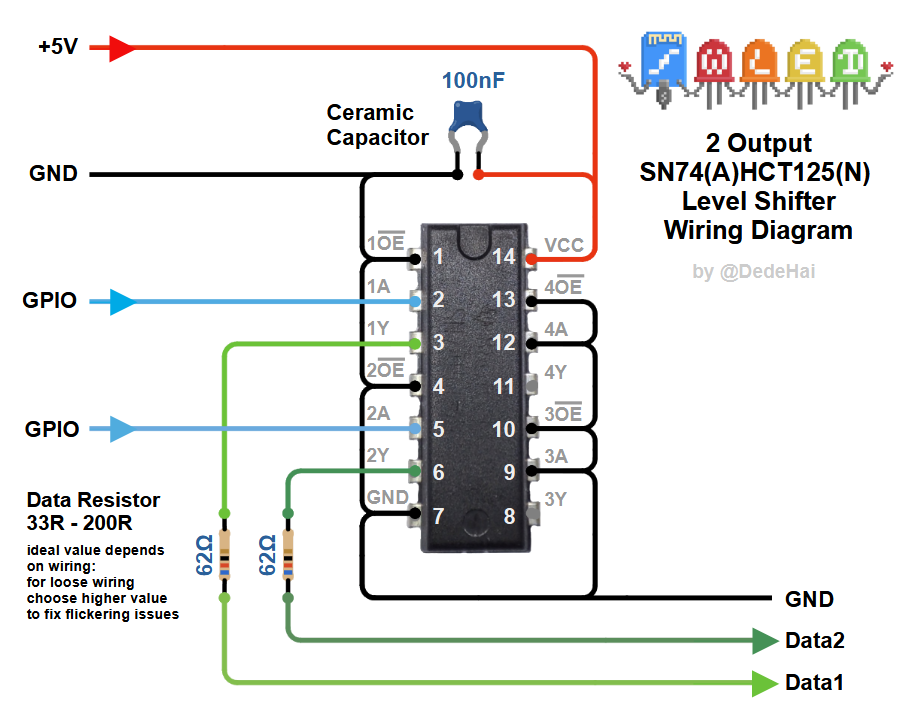

Shifter 2CH

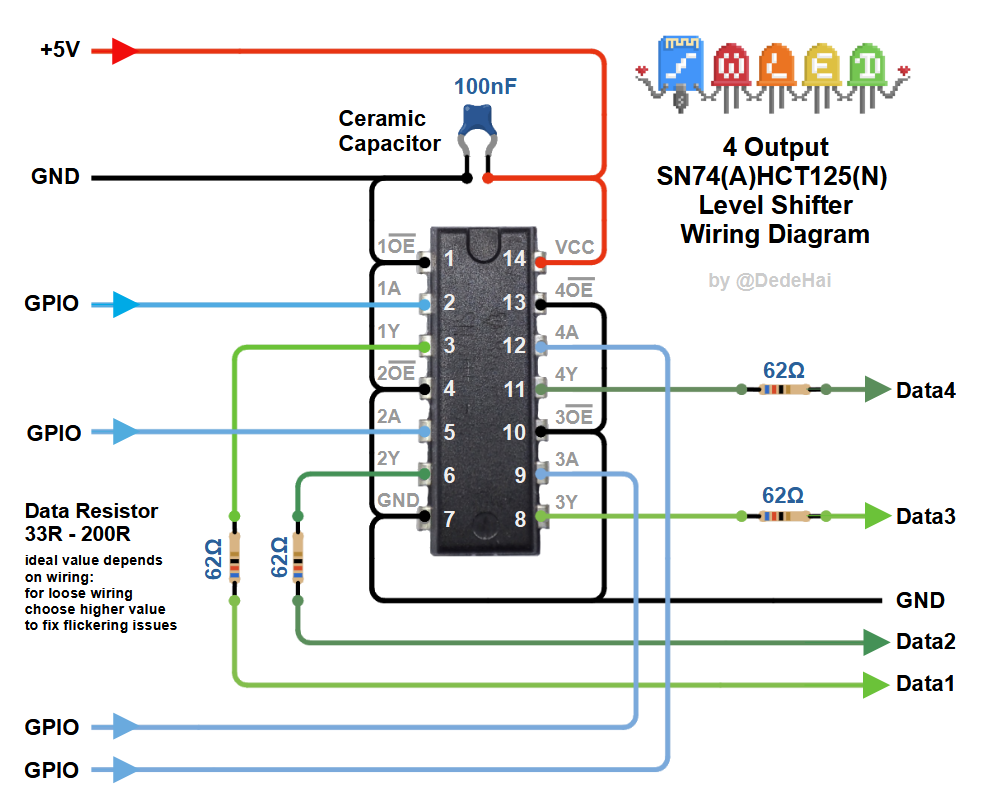

Shifter 4CH
